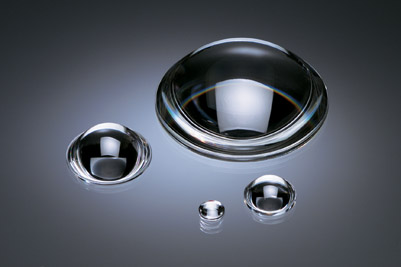

Aspheric Condenser Lenses
• Ideal for broadband illumination applications
• Low f-number with minimal spherical aberrations Aspheric lenses have at least one surface that is not a true sphere. The aspheric profile used is frequently a conic surface of revolution about the lens axis, matched in design to the shape of the second surface. The shape of this lens produces a dramatic reduction of the spherical aberration, even for very low f-numbers. The lenses listed here have a molded aspheric surface which is fire polished. These lenses are mainly used in condenser or illumination applications. They are also used where a high light gathering power is needed such as for focusing onto detectors or fibers.
• Low f-number with minimal spherical aberrations Aspheric lenses have at least one surface that is not a true sphere. The aspheric profile used is frequently a conic surface of revolution about the lens axis, matched in design to the shape of the second surface. The shape of this lens produces a dramatic reduction of the spherical aberration, even for very low f-numbers. The lenses listed here have a molded aspheric surface which is fire polished. These lenses are mainly used in condenser or illumination applications. They are also used where a high light gathering power is needed such as for focusing onto detectors or fibers.
| Part # | Product Description | Price | In Stock | QTYAdd to Cart |
|---|---|---|---|---|
| 01-103-020 | Aspheric Condenser Lens, Ø6.5mm, 7.5mm EFL, R2 = -94.7 mm, Coated 350-700nm |
$35.50
|
Yes | |
| 01-103-021 | Aspheric Condenser Lens, Ø6.5mm, 7.5mm EFL, R2 = -94.7 mm, Coated 650 - 1050nm |
$35.50
|
Yes | |
| 01-103-031 | Aspheric Condenser Lens, Ø24mm, 18mm EFL - Plano, Coated 650-1000nm |
$39.50
|
Yes |
| Part # | Product Description | Price | In Stock | QTYAdd to Cart |
|---|---|---|---|---|
| 34-2287-000 | 49.0 mm FL - Aspheric Condenser Lens - Convex |
$70.00
|
Yes | |
| 34-6338-000 | 25.0 mm FL - Aspheric Condenser Lens - Plano |
$40.00
|
Yes | |
| 34-6338-275 | 25.0 mm Focal Length - Aspheric Condenser Lens - Plano, ∅40mm, Special |
$59.00
|
Yes |
