Kinematic Thin Optic Mounts

Kinematic Thin Optic Mounts

• Threaded to allow mountingof thin optics
• L-shaped back plate maximizes clear aperture at 45 degrees
• 100 threads per inch adjusters
• Hex key adjusters
• Hard inserts for long life
• Affordably priced

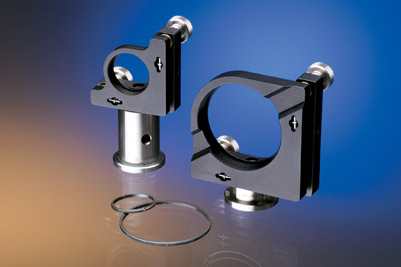

The Ealing Kinematic Thin Optic Mounts are very similar to the standard Kinematic mirror mounts except these are designed specifically to accept thin, round, front surface mirrors or beamsplitters. Two sizes are available to accept either 1 inch or 2 inch diameter optics.

These mounts provide an excellent, stable and accurate method of mounting thin, round optics. Both mounts incorporate an L-shaped backplate. This is designed to provide the maximum clear aperture at 45 degrees for 1 inch or 2 inch diameter beamsplitters or thin mirrors. Optics are retained in the mount by means of a threaded retaining ring that can be tightened using a spanner wrench.

The clearance mounting holes provided in the L-shaped back plate are designed for universal mounting on almost all manufacturer’s hardware – these M4 (8-32) clearance mounting holes are positioned directly below the center of the mounted optic.

Kinematic Thin Optic Mounts can be mounted on Half-inch posts.

Part # Product Description Price In Stock QTYAdd to Cart
53-2614-000 Kinematic Thin Optic Mount, 1 inch
$129.00

Call for Availability
53-2622-000 Kinematic Thin Optic Mount, 2 inch
$149.00
Yes
