Linear Stage Hardware

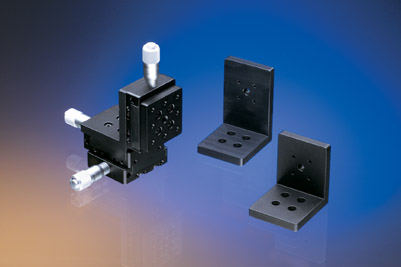

Angle Brackets are designed to allow two or three stages to be combined to form multi-axis translation stages. They are available in a short low profile version as well as a longer, taller version. Mounting screws are supplied with all Angle Brackets.
• Ideal for building 3-axis stages
• Quality Aluminum construction
Top Plates are available with standard hole patterns in metric (M4 and M6) and inch (8-32 and 1/4-20). They can be used in conjunction with Ealing Linear Stages (shown in image) to provide a suitable mounting surface for component mounts and holders.
Base Plates Ealing's General Purpose Mounting Bases allow a wide range of stages and component mounts to be directly mounted to an optical table, breadboard, Linear Stage positioner, or rail carrier.
| Part # | Product Description | Price | In Stock | QTYAdd to Cart |
|---|---|---|---|---|
| 72-0113-000 | Angle Bracket for 6.5mm Travel Stage (Mini Stage), Short, Metric Hole Pattern |
$49.35
|
Yes | |
| 02-808-001 | Angle Bracket for 25mm or 50mm Travel Stage, Universal |
$99.75
|
Yes | |
| 72-0121-000 | Angle Bracket for 6.5mm Travel Stage (Mini Stage), Long, Metric Hole Pattern |
$60.90
|
Yes | |
| 61-3166-000 | Top Plate for 6.5mm or 12.7mm Travel Stage, 8-32 Inch Hole Pattern |
$49.35
|
Yes | |
| 74-3166-000 | Top Plate for 6.5mm or 12.7mm Travel Stage, M4 Metric Hole Pattern |
$49.35
|
Call for Availability
|
|
| 74-0212-000 | Compact Base Plate, Metric |
$24.00
|
Call for Availability
|
|
| 61-0212-000 | Compact Base Plate, Inch |
$24.00
|
Call for Availability
|
|
| 53-3828-000 | Slotted Base Plate, Metric |
$35.00
|
Call for Availability
|
|
| 61-3828-000 | Slotted Base Plate, Inch |
$35.00
|
Yes | |
| 74-0089-000 | Wide Base Plate Adjustable, Metric |
$38.00
|
Yes | |
| 61-0089-000 | Wide Base Plate, Adjustable, Inch |
$38.00
|
Yes |
